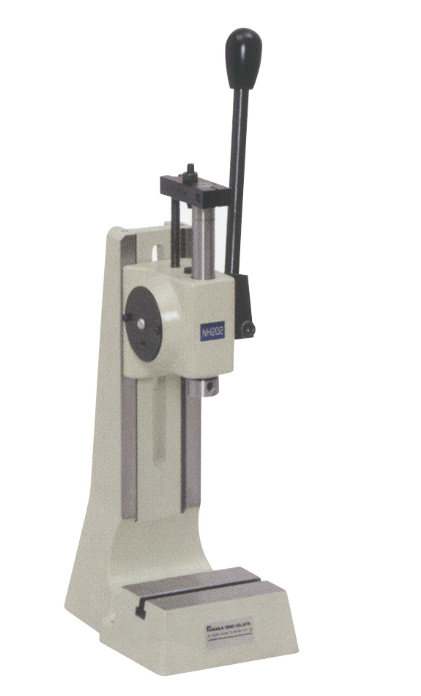

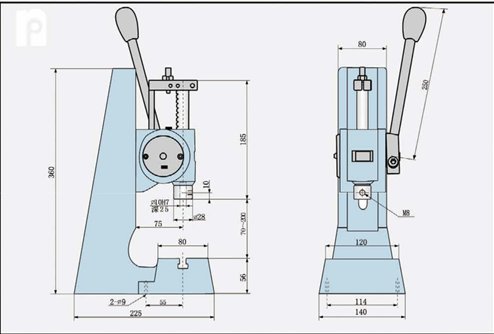

NH-202
Feature:
1. Excellent operating performance.
2. Strong pressure, soft and long stroke, suitable for Fan
Guoguang. 3. Miniaturized design saves storage space.
4. It is convenient to adjust the stroke, install and replace the tire, and it is easy to operate.
5. Made of steel-rich material.
6. Especially suitable for small and medium-sized parts.
Notice:
When installing the upper tire on the main shaft, the bearing capacity should not exceed 2kg. If it exceeds this range, themain shaft will automatically drop, which will affect the work and cause damage to the machine body, shortening its service life.
Product Model:
|
Model |
NH100 |
NH202 |
NH250 |
NH255 |
NH400 |
NH600 |
NH1200 |
NH1000 |
|
Pressure KN |
0.4 |
1.96 |
2.35 |
2.35 |
4 |
6 |
9 |
10 |
|
Stroke mm A |
40 |
60 |
50 |
110 |
40 |
30 |
125 |
30 |
|
Opening height mm F |
45-145 |
70-200 |
90-355 |
90-355 |
90-355 |
90-350 |
75-320 |
80-330 |
|
Deep throat mm （*） C |
65 （*） |
75（*） |
105（*） |
105（*） |
105（*） |
105（*） |
105（*） |
105（*） |
|
Press weight kg |
8 |
18 |
29 |
30 |
30 |
32 |
42 |
40 |
|
Base height M |
265 |
360 |
540 |
540 |
540 |
540 |
540 |
540 |
|
Table size B*T mm |
81*86 |
140*120 |
120*180 |
120*180 |
120*180 |
120*180 |
120*180 |
120*180 |
|
Shaft bore diameter ∮E |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
|
Base platform height K mm |
35 |
56 |
60 |
60 |
60 |
60 |
60 |
60 |
|
* |
Indicates that customization is acceptable |
|||||||
