Description:

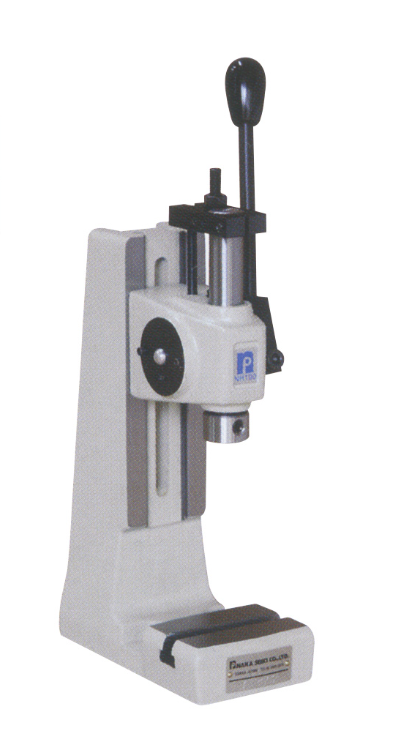

NH-100
Portable design + excellent operating
performance, making it so easy to move between workplaces
Feature:
1. Space-saving portable design.
2. Small and light, making it easy to transport between workplaces.
3. Made of steel-rich material.
4. The head height can be adjusted freely.
5. Most suitable for pressing in some small precision electrical parts.
Notice:
When installing the upper tire on the main shaft, the weight should not exceed 1kg. If it exceeds this range, the main shaft will automatically drop,
which will affect the work and cause damage to the machine body, shortening its service life.

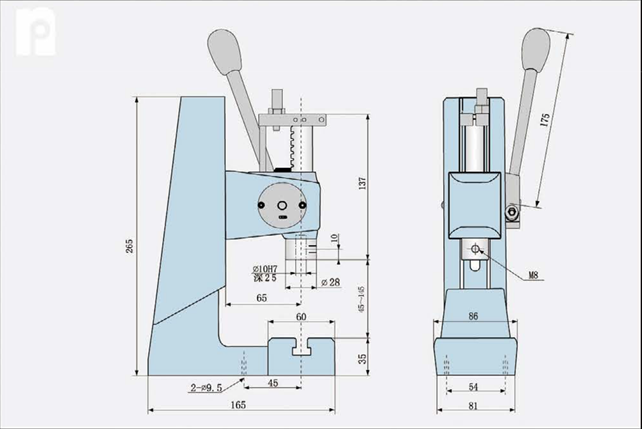

Product Model:
|
Model |
NH100 |
NH202 |
NH250 |
NH255 |
NH400 |
NH600 |
NH1200 |
NH1000 |
|
Pressure KN |
0.4 |
1.96 |
2.35 |
2.35 |
4 |
6 |
9 |
10 |
|
Stroke mm A |
40 |
60 |
50 |
110 |
40 |
30 |
125 |
30 |
|
Opening height mm F |
45-145 |
70-200 |
90-355 |
90-355 |
90-355 |
90-350 |
75-320 |
80-330 |
|
Deep throat mm （*） C |
65 （*） |
75（*） |
105（*） |
105（*） |
105（*） |
105（*） |
105（*） |
105（*） |
|
Press weight kg |
8 |
18 |
29 |
30 |
30 |
32 |
42 |
40 |
|
Base height M |
265 |
360 |
540 |
540 |
540 |
540 |
540 |
540 |
|
Table size B*T mm |
81*86 |
140*120 |
120*180 |
120*180 |
120*180 |
120*180 |
120*180 |
120*180 |
|
Shaft bore diameter ∮E |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
|
Base platform height K mm |
35 |
56 |
60 |
60 |
60 |
60 |
60 |
60 |
|
* |
Indicates that customization is acceptable |
|||||||
The NH100 Manual Hand Press is a robust, versatile tool perfectly designed for precision pressing tasks. This compact press is made from high-quality steel and is perfect for small-scale projects. They are lightweight and portable solution for various work environments. It has adjustable head height, which allows for precise customization. With a pressure capacity of 0.4 KN and a stroke length of 40 mm, the NH100 ensures accurate and reliable performance that enhances its productivity and efficiency. For more details, Explore now!
