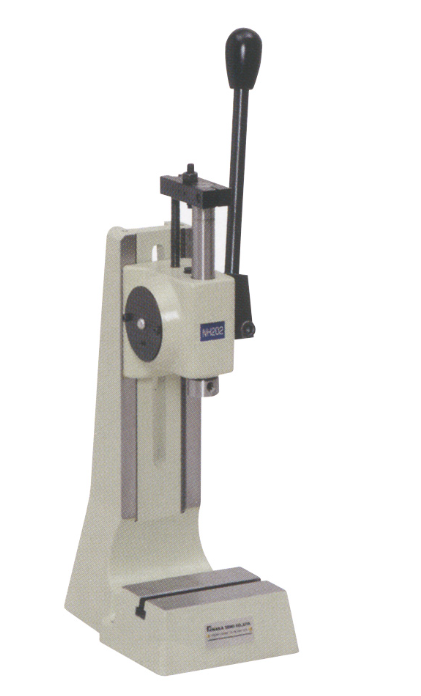

Description:
NH-255
The increase in stroke broadens the scope of application
Feature:
1. Made of steel-rich material.
2. Additional people can be added to the itinerary to complete various specifications of work requirements.
3. The operation and maintenance are simple, and the tire replacement and installation are also very convenient.
4. Precise processing and extended service life.
5. Especially suitable for large and medium-sized parts with long strokes.
Notice:
Taking into account the characteristics of the increased stroke of the machine body, in order to ensure that the spindle has sufficient rebound power, the
weight should be reduced as much as possible when the upper face is installed on the spindle part. If it is too heavy, it will also cause damage to the machine itself and shorten its service life.

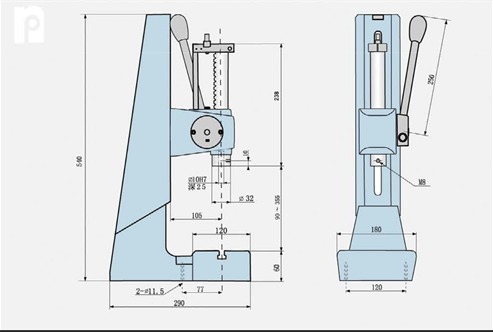

Product Model:
|
Model |
NH100 |
NH202 |
NH250 |
NH255 |
NH400 |
NH600 |
NH1200 |
NH1000 |
|
Pressure KN |
0.4 |
1.96 |
2.35 |
2.35 |
4 |
6 |
9 |
10 |
|
Stroke mm A |
40 |
60 |
50 |
110 |
40 |
30 |
125 |
30 |
|
Opening height mm F |
45-145 |
70-200 |
90-355 |
90-355 |
90-355 |
90-350 |
75-320 |
80-330 |
|
Deep throat mm （*） C |
65 （*） |
75（*） |
105（*） |
105（*） |
105（*） |
105（*） |
105（*） |
105（*） |
|
Press weight kg |
8 |
18 |
29 |
30 |
30 |
32 |
42 |
40 |
|
Base height M |
265 |
360 |
540 |
540 |
540 |
540 |
540 |
540 |
|
Table size B*T mm |
81*86 |
140*120 |
120*180 |
120*180 |
120*180 |
120*180 |
120*180 |
120*180 |
|
Shaft bore diameter ∮E |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
|
Base platform height K mm |
35 |
56 |
60 |
60 |
60 |
60 |
60 |
60 |
|
* |
Indicates that customization is acceptable |
|||||||
