Description:

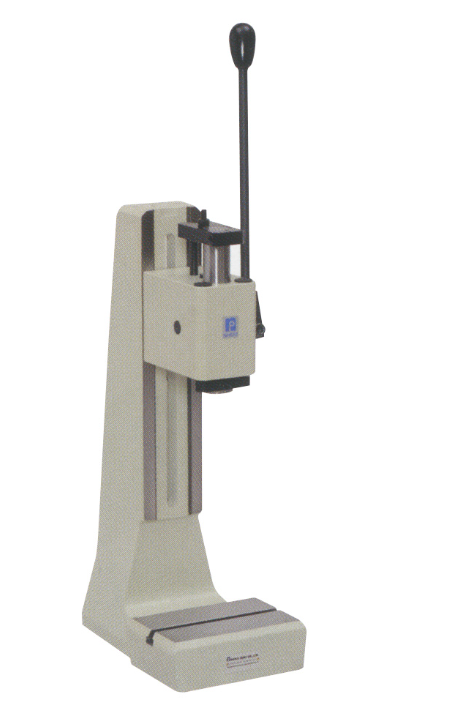

NH-400
Using rack and pinion transmission, the output pressure is balanced throughout the entire stroke
Feature:
1. Use high-quality materials and advanced processing technology to extend service life:
2. Suitable for pressing, bending, stamping, cutting, plastic molding, engraving, riveting and other precision processing:
3. The return stroke uses a cylindrical compression spring to ensure a service life of 1 million times, and the punch weight reaches 2kg.
▶Note:
When installing the upper face on the spindle part, please do not exceed the load capacity of 1kg. If it exceeds this range, the spindle will automatically drop, which will affect the work and cause damage to the machine body, shortening its service life.

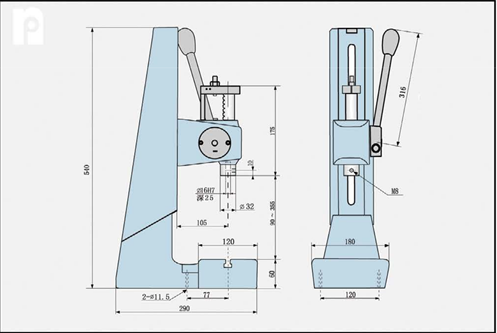

Product Model:
|
Model |
NH100 |
NH202 |
NH250 |
NH255 |
NH400 |
NH600 |
NH1200 |
NH1000 |
|
Pressure KN |
0.4 |
1.96 |
2.35 |
2.35 |
4 |
6 |
9 |
10 |
|
Stroke mm A |
40 |
60 |
50 |
110 |
40 |
30 |
125 |
30 |
|
Opening height mm F |
45-145 |
70-200 |
90-355 |
90-355 |
90-355 |
90-350 |
75-320 |
80-330 |
|
Deep throat mm （*） C |
65 （*） |
75（*） |
105（*） |
105（*） |
105（*） |
105（*） |
105（*） |
105（*） |
|
Press weight kg |
8 |
18 |
29 |
30 |
30 |
32 |
42 |
40 |
|
Base height M |
265 |
360 |
540 |
540 |
540 |
540 |
540 |
540 |
|
Table size B*T mm |
81*86 |
140*120 |
120*180 |
120*180 |
120*180 |
120*180 |
120*180 |
120*180 |
|
Shaft bore diameter ∮E |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
|
Base platform height K mm |
35 |
56 |
60 |
60 |
60 |
60 |
60 |
60 |
|
* |
Indicates that customization is acceptable |
|||||||
