Description:

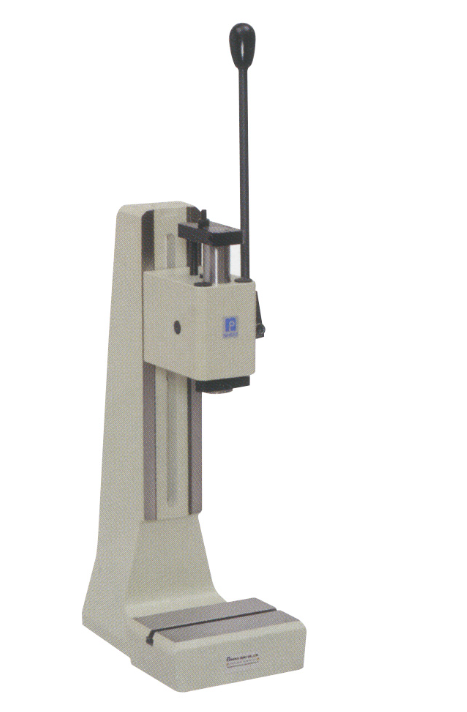

NH600
Unlike many hand press machines, the NH-600 combines accuracy with a user-friendly design. It offers a reliable tool to professionals and hobbyists. Our NH-600 is compact enough to fit into smaller workspaces without compromising performance.
This machine guarantees efficiency in every press! 🌟
1. Use high-quality materials and advanced processing technology to extend service life
2. Suitable for pressing, bending, stamping, cutting, plastic molding, engraving, riveting and other precision processing
3. The return trip uses a column compression spring to ensure a service life of 1 million times, and the punch weight reaches 2kg.
Key Features:
- 💪 Durable Metal Frame: It is designed for challenging tasks and ensure long-lasting use.
- 🛠️ Ergonomic Handle: It provides smooth and comfortable operation.
- 🔩 Compact Yet Powerful: It also offers significant output despite its compact size
Notice:
When installing the upper head on the spindle, please make sure the weight does not exceed 2kg. If it exceeds this range,
the spindle will automatically drop, which will affect the work and cause damage to the machine itself, shortening its service life.
Product Model:
|
Model |
NH100 |
NH202 |
NH250 |
NH255 |
NH400 |
NH600 |
NH1200 |
NH1000 |
|
Pressure KN |
0.4 |
1.96 |
2.35 |
2.35 |
4 |
6 |
9 |
10 |
|
Stroke mm A |
40 |
60 |
50 |
110 |
40 |
30 |
125 |
30 |
|
Opening height mm F |
45-145 |
70-200 |
90-355 |
90-355 |
90-355 |
90-350 |
75-320 |
80-330 |
|
Deep throat mm （*） C |
65 （*） |
75（*） |
105（*） |
105（*） |
105（*） |
105（*） |
105（*） |
105（*） |
|
Press weight kg |
8 |
18 |
29 |
30 |
30 |
32 |
42 |
40 |
|
Base height M |
265 |
360 |
540 |
540 |
540 |
540 |
540 |
540 |
|
Table size B*T mm |
81*86 |
140*120 |
120*180 |
120*180 |
120*180 |
120*180 |
120*180 |
120*180 |
|
Shaft bore diameter ∮E |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
10H7 |
|
Base platform height K mm |
35 |
56 |
60 |
60 |
60 |
60 |
60 |
60 |
|
* |
Indicates that customization is acceptable |
|||||||
