Description:

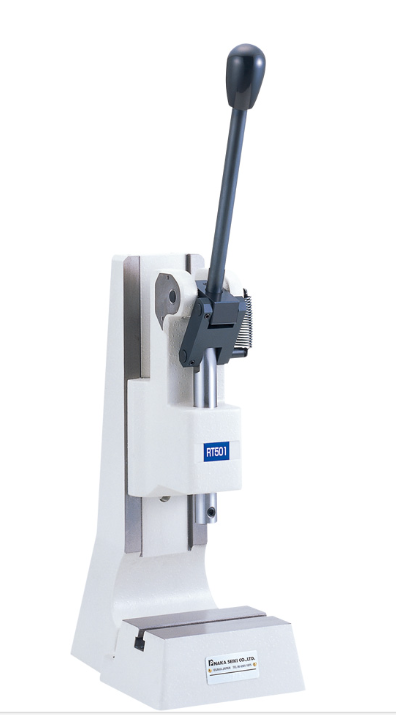

RT-501
Key Features:
- ⚙️ Durable Build: It is constructed with a solid metal frame to ensure long-term use.
- 🛠️ Ergonomic Handle: It is designed for smooth, easy operation and maximum control.
- 📏 Adjustable Height: It allows precise control for various applications and materials.
What Sets RT-501 Apart:
The RT-501 offers an adjustable height mechanism, which makes it more flexible for different tasks. Its compact yet robust design is ideal for small spaces without sacrificing performance.
The RT-501 is the go-to solution for anyone seeking a reliable, efficient, and precise hand press machine for various small to medium-scale applications. 🌟. Look for more similar products here.
More Properties:
The use of rigid materials and the simplicity of the structure eliminate cumbersome maintenance.
1. Miniaturized design saves space.
2. Due to the structural characteristics of the RT product, its pressure is stronger than the horizontal ratio.
3. The simple structure saves a lot of maintenance.
1. Made of steely material.
5. Especially suitable for small and medium-sized parts.
Notice:
When installing the face on the spindle, we recommend that the weight should not exceed 0.5kg. If it exceeds this range,
the spindle will automatically drop, which will affect the work and cause damage to the machine itself, shortening its service life.
|

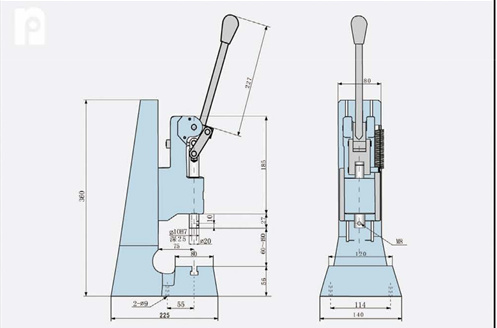

Model |
RT501 |
RT800 |
RT820 |
RT840 |
|
Pressure KN |
4.9 |
7.8 |
9.8 |
14 |
|
Stroke mm A |
30 |
60 |
40 |
20 |
|
Opening height mm F |
60-190 |
95-350 |
85-340 |
78-333 |
|
Deep throat mm （*） C |
75（*） |
105（*） |
105（*） |
105（*） |
|
Press weight kg |
19 |
32 |
32 |
32 |
|
Base height M |
360 |
540 |
540 |
540 |
|
Table size B*T mm |
140*120 |
180*120 |
180*120 |
180*120 |
|
Shaft bore diameter ∮E |
10H7 |
10H7 |
10H7 |
10H7 |
|
Base platform height K mm |
35 |
56 |
60 |
60 |
|
* |
Customizable |
|||
