Description:
RT-800
Extra large stroke and strong pressure increase the scope of application.
Feature:
1. Stronger pressure increases the applicable range.
2. Made of steel-rich material.
3. The adjustment and installation of the tire are very convenient, and only require simple maintenance and maintenance.
1. Especially suitable for medium-sized parts that are under pressure and have long strokes.
Notice:
When installing the upper tire on the spindle, the weight should not exceed 2kg. If it exceeds this weight, the spindle will
automatically drop, which will affect the work and cause damage to the machine itself, shortening its life.
|

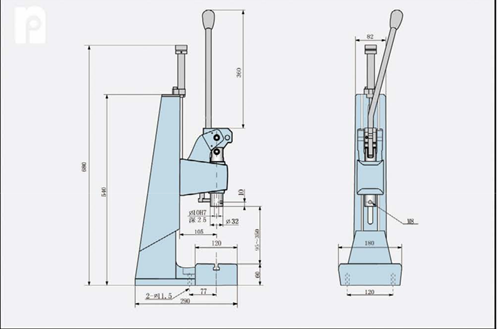

Model |
RT501 |
RT800 |
RT820 |
RT840 |
|
Pressure KN |
4.9 |
7.8 |
9.8 |
14 |
|
Stroke mm A |
30 |
60 |
40 |
20 |
|
Opening height mm F |
60-190 |
95-350 |
85-340 |
78-333 |
|
Deep throat mm （*） C |
75（*） |
105（*） |
105（*） |
105（*） |
|
Press weight kg |
19 |
32 |
32 |
32 |
|
Base height M |
360 |
540 |
540 |
540 |
|
Table size B*T mm |
140*120 |
180*120 |
180*120 |
180*120 |
|
Shaft bore diameter ∮E |
10H7 |
10H7 |
10H7 |
10H7 |
|
Base platform height K mm |
35 |
56 |
60 |
60 |
|
* |
Customizable |
|||
