Description:
RT-820
Excellent operating performance and simple structure greatly improve operating efficiency
Feature:
1. Stronger pressure increases its applicable range.
2. Use materials with unique personality.
3. The adjustment and installation of the tire are very convenient and require only simple maintenance and upkeep.
4. It is especially suitable for large and medium-sized parts with high pressure and requirements on stroke.
Notice:
When installing the upper tire on the main shaft, the weight should not exceed 2kg. If it exceeds this range, the tire will automatically
drop, which will affect the work and cause damage to the machine body, shortening its service life.
|

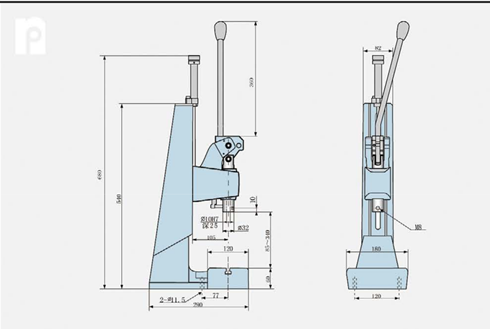

Model |
RT501 |
RT800 |
RT820 |
RT840 |
|
Pressure KN |
4.9 |
7.8 |
9.8 |
14 |
|
Stroke mm A |
30 |
60 |
40 |
20 |
|
Opening height mm F |
60-190 |
95-350 |
85-340 |
78-333 |
|
Deep throat mm （*） C |
75（*） |
105（*） |
105（*） |
105（*） |
|
Press weight kg |
19 |
32 |
32 |
32 |
|
Base height M |
360 |
540 |
540 |
540 |
|
Table size B*T mm |
140*120 |
180*120 |
180*120 |
180*120 |
|
Shaft bore diameter ∮E |
10H7 |
10H7 |
10H7 |
10H7 |
|
Base platform height K mm |
35 |
56 |
60 |
60 |
|
* |
Customizable |
|||
