Description:
RT-840
Greater pressure, excellent operating performance and simple structure greatly improve operating efficiency.
Feature:
1. Stronger pressure increases its applicable range.
2. Made of steel-rich material.
3. The adjustment and installation of the tire are very convenient and require only simple maintenance and upkeep.
4. Especially suitable for large and medium-sized parts with pressure requirements.
Notice:
When installing the face on the spindle, please do not exceed 2kg. If it exceeds this range, the spindle will
automatically drop, which will affect the work and cause damage to the machine body, shortening its service life.
|

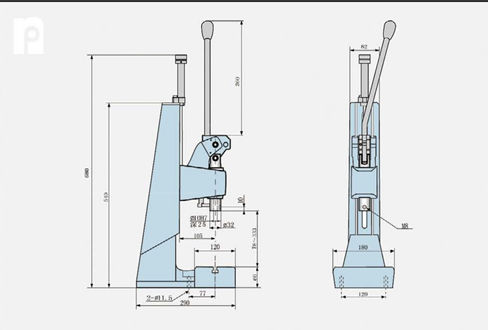

Model |
RT501 |
RT800 |
RT820 |
RT840 |
|
Pressure KN |
4.9 |
7.8 |
9.8 |
14 |
|
Stroke mm A |
30 |
60 |
40 |
20 |
|
Opening height mm F |
60-190 |
95-350 |
85-340 |
78-333 |
|
Deep throat mm （*） C |
75（*） |
105（*） |
105（*） |
105（*） |
|
Press weight kg |
19 |
32 |
32 |
32 |
|
Base height M |
360 |
540 |
540 |
540 |
|
Table size B*T mm |
140*120 |
180*120 |
180*120 |
180*120 |
|
Shaft bore diameter ∮E |
10H7 |
10H7 |
10H7 |
10H7 |
|
Base platform height K mm |
35 |
56 |
60 |
60 |
|
* |
Customizable |
|||
