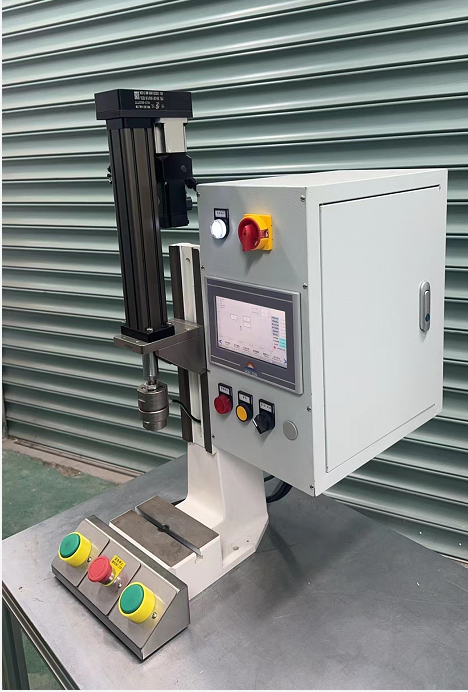

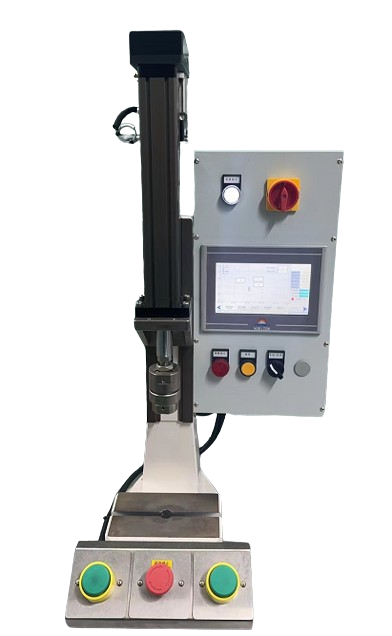

Product Name: Servo press equipment with pressure/displacement curve monitoring,
Tabletop servo press with pressure/displacement curve monitoring
Electric presses with pressure/displacement curve monitoring, desktop electric presses with pressure/displacement curve monitoring
Details: The desktop servo press equipment has high displacement accuracy, controlled process pressure, real-time collection of press-fitting process curves, small size, light weight and is widely used in auto parts, automotive electronics, metal forming (small), medical tools, motor assembly (bearings, stator, rotor, magnets) and other processes that require precision assembly.
Our Servo Press combines accuracy and versatility, making it perfect for tasks requiring detailed pressure and displacement monitoring. Its real-time curve collection ensures optimal quality control, while the user-friendly design simplifies operation. It is customizable, compact, and meets diverse industrial needs, offering reliable performance in a small footprint. Explore more now!
Product Model:
|
Model |
LM-0.1T-100 |
LM-0.5T-100 |
LM-1T-100 |
LM-2T-100 |
|
Pressure KN |
1KN |
5KN |
10KN |
20KN |
|
Stroke mm(*) |
100（200*） |
100（200*） |
100（300*） |
100mm（300*） |
|
Opening height mm(*). |
150-300 （*） |
150-300（*） |
150-300（*） |
150-300（*） |
|
Throat depth mm (*) |
86 （*） |
86（*） |
86（*） |
86（*） |
|
Maximum rapid traverse speed (mm/s). |
100 |
100 |
100 |
100 |
|
Assembly speed mm/s |
0-35mm/s |
0-35mm/s |
0-35mm/s |
0-35mm/s |
|
Displacement accuracy (mm)(*) |
+/-0.02mm (+/-0.01mm*) |
+/-0.02mm (+/-0.01mm*) |
+/-0.02mm (+/-0.01mm*) |
+/-0.02mm (+/-0.01mm*) |
|
Pressure accuracy N |
1% |
1% |
1% |
1% |
|
Holding time s |
0-999s |
0-999s |
0-999s |
0-99s |
|
Press voltage V |
AC220V |
AC220V |
AC380V |
AC380V |
|
Press power KW |
0.2KW |
0.5KW |
1.1KW |
1.6KW |
|
Press weight kg |
35 |
50 |
100 |
100 |
|
* |
Indicates that customization is acceptable |
|||

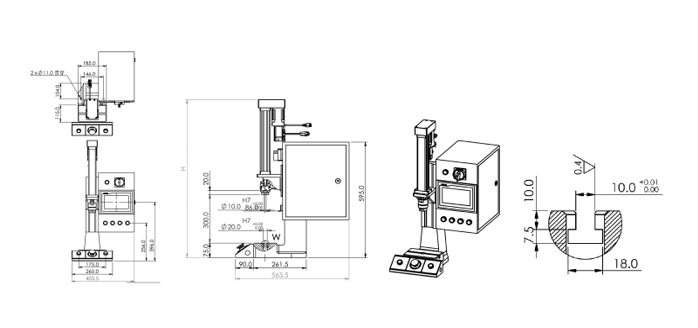

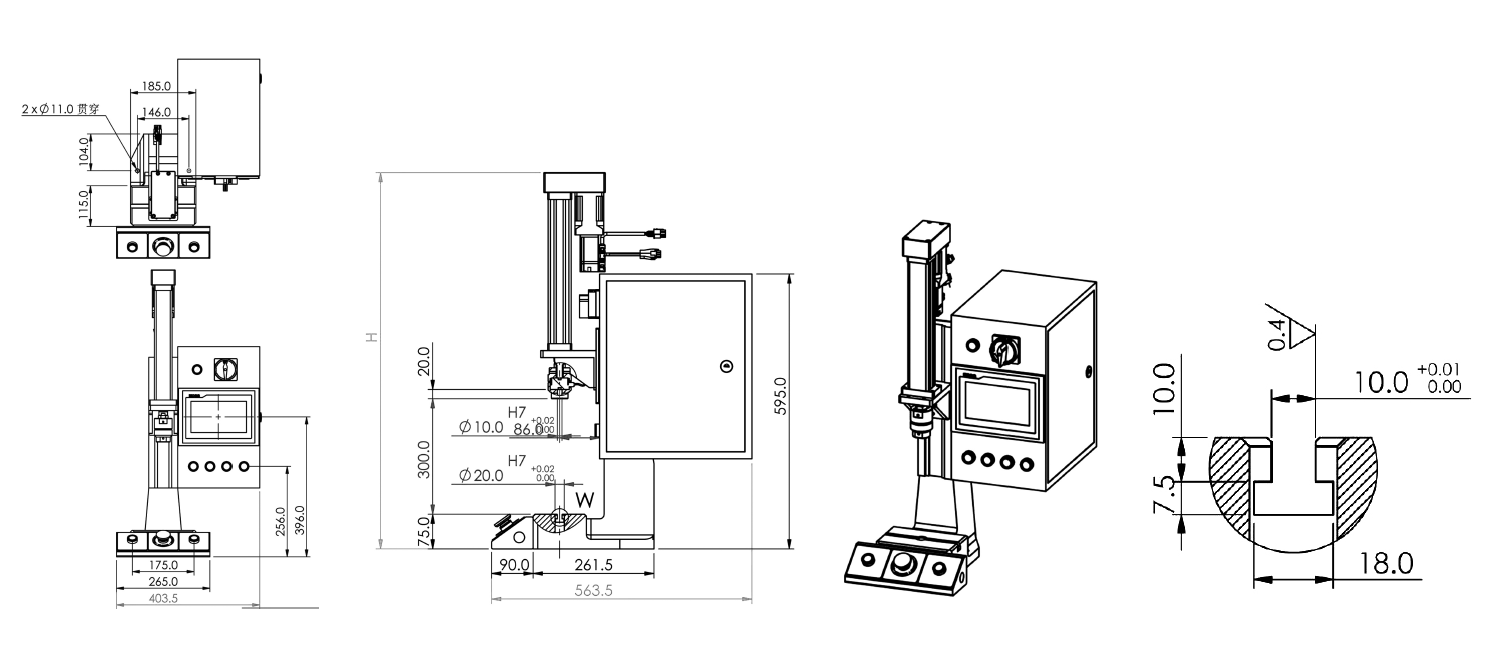

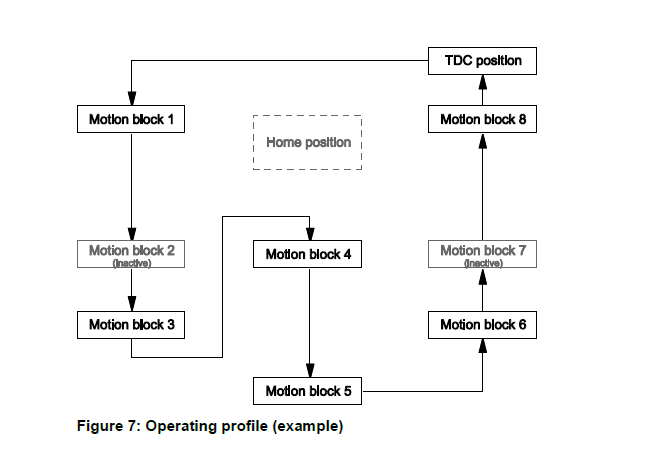

Press workflow (8 moving blocks can be set in the whole process, and the working mode and speed can be set in each moving block.) Once set, the press executes according to the moving block you activated, eventually returning to the TDC position).

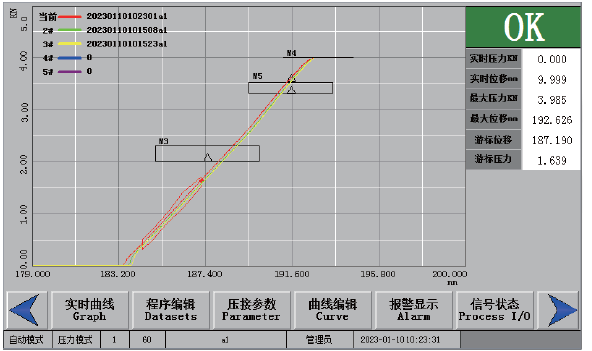

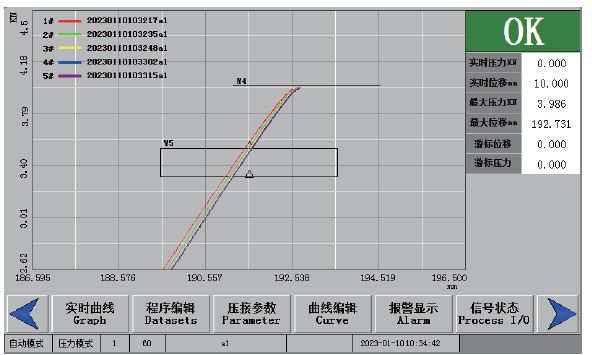

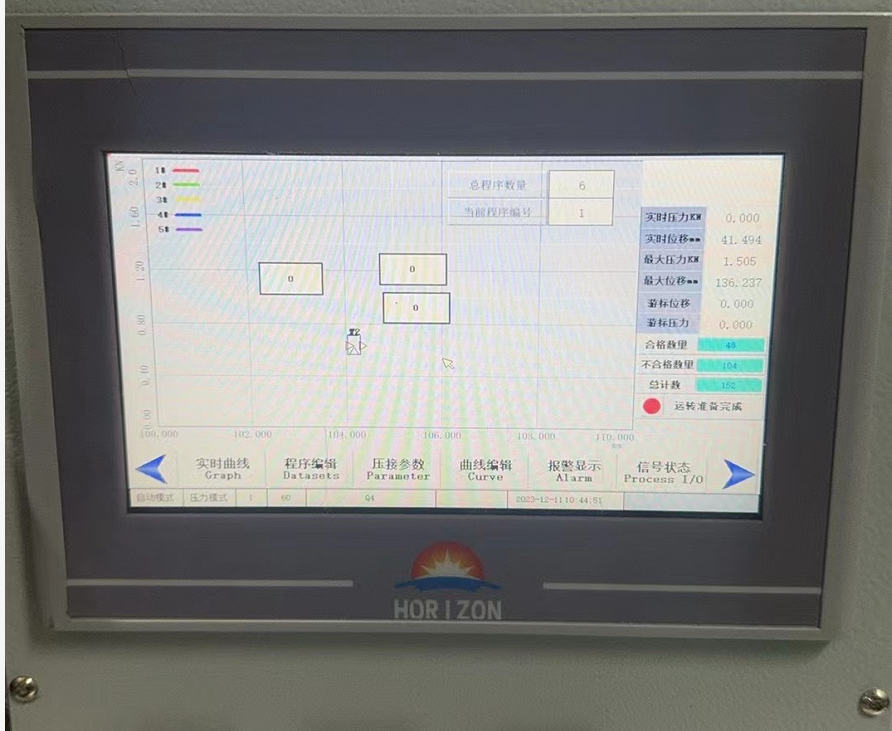

Press curve acquisition
Real time curve
Real-time pressure: Display real-time pressure value
Real-time displacement: display real-time displacement value
Maximum pressure: During this press installation process, the maximum pressure value
Maximum displacement: the maximum displacement value during this press installation process
Displacement point coordinates: Display the displacement coordinate value of the mouse in the current curve interface, used to measure data in the curve
Monitoring Window Settings

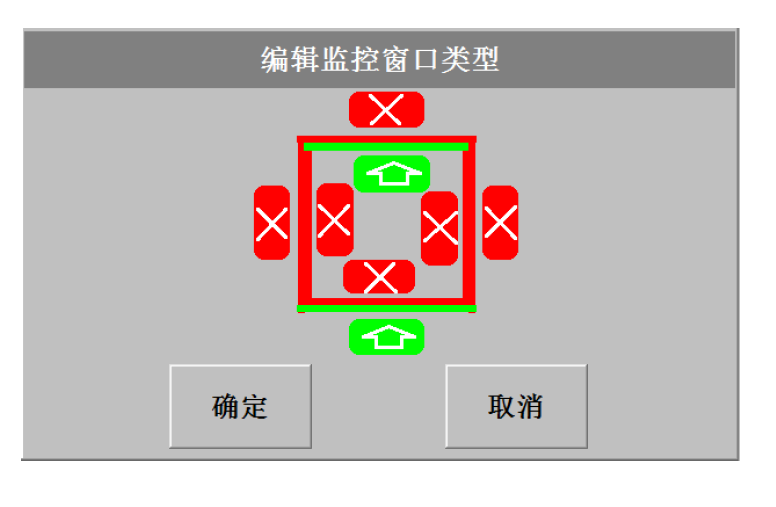

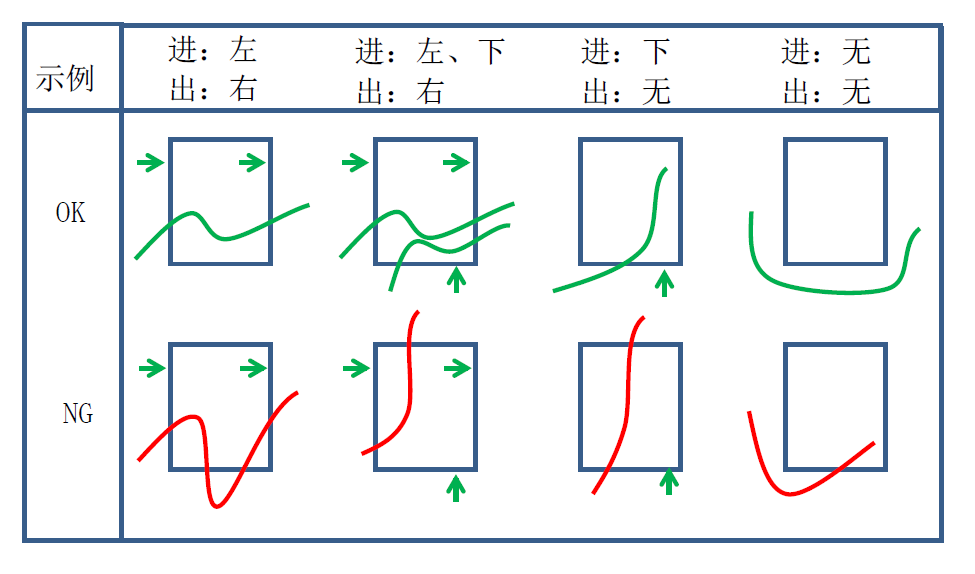

Monitoring Windows: Increase monitoring windows in key areas where products require quality monitoring. In the graph, draw a rectangle from the upper left to the lower right, and then display the picture interface. Its function is to set two tolerance zones in the drawn rectangular area, namely the pressure tolerance zone and the displacement tolerance zone, to achieve quality control of the crimping process. control. This instrument can set up 5 monitoring windows at the same time according to the actual needs of the product. A green arrow outside the rectangular frame indicates that entry into the monitoring window is allowed; a red x outside the rectangular frame indicates that entry into the monitoring window is prohibited; a green arrow inside the rectangular frame indicates that exit from the monitoring window is allowed; a red x outside the rectangular frame indicates that exit from the monitoring window is prohibited;
